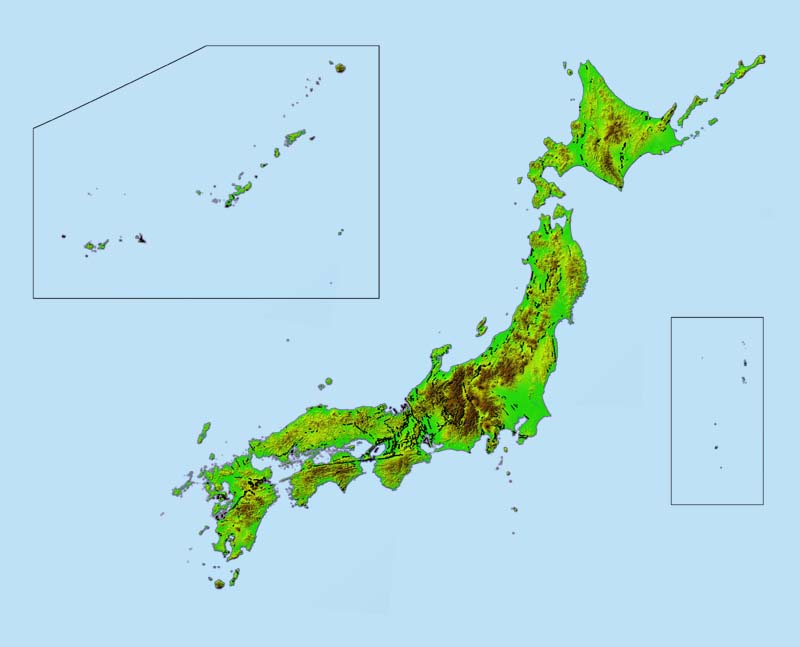

Figure2-23 The topography of the Japanese archipelago and the distribution of active faults.


Active faults often lie along a boundary between mountainous areas and plains. To a certain extent, active faults run in consistent directions. For example, in the Chubu region, most active faults run in a northeast-southwest direction or a northwest-southeast direction.

[Source: See end notes.]
