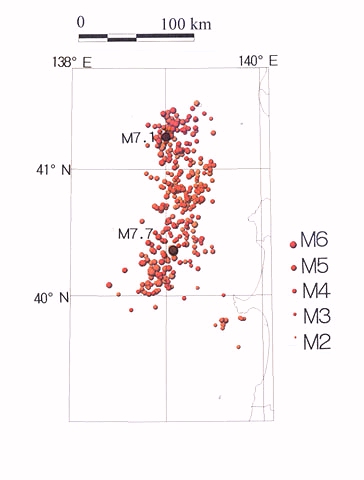

Figure4-38 Distribution of aftershocks for the Central Sea of Japan Earthquake (M 2 or greater, May 26 - June 30, 1983)


M 7.7 shows the hypocenter of the main shock and the M 7.1 that of the largest aftershock.

[Compiled from data from Tohoku and Hirosaki Universities]
