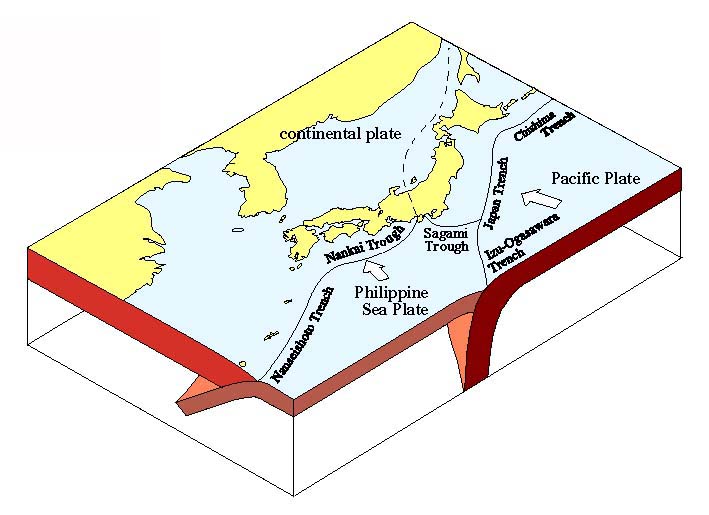

Figure2-17 Plates in the Japanese archipelago and surrounding area.


Arrows in the figure show the relative motion of each plate in relation to the land plate. One theory holds that a plate boundary exists along the eastern margin of the Sea of Japan (Japan Sea) (broken line in figure).
